73477BN4UN00N0H111P3
Descripción de Producto
- (EXTERNAL PILOT PRESSURE)

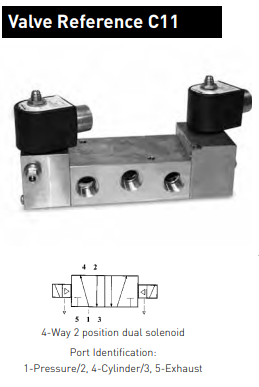

- FOUR-WAY
- DOUBLE SOLENOID
- SIZE: 1/2″
- ORIFICE: 5/8″
- Cv: 4.0
- BODY: BRASS
- SEAL: NBR
- TYPE: PILOT OPERATED
- MIN OPERATING PRESSSURE: 30 PSI
- MAX OPERATING PRESSURE DIFFERENTIAL: 150 PSIG with AC COIL
- Max: Fluid temperature: 167 °F
- INCLUYE BOBINA H111P3
- H1: 1/2″ NPT Conduit, 10 Watt, class F, Nema 7,9
- 11: Class F coils with 18″ leads , CATALOG PAGE: COILS_PG1
- P3: 110/120 Vac 50/60 Hz , VOLTAGE OPTIONS: COILS_VOLTAGE
- CATALOG PAGE: PAG-82_SKINNER
- SKINNER CATALOG: skinner_catalog CFL00897
